Problem
2003 AMC 10A Problem 10

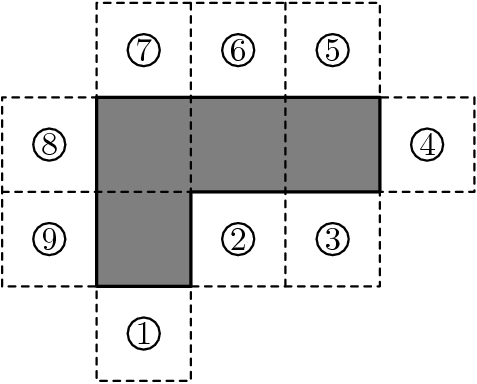

The polygon enclosed by the solid lines in the figure consists of 4 congruent squares joined edge-to-edge. One more congruent square is attached to an edge at one of the nine positions indicated. How many of the nine resulting polygons can be folded to form a cube with one face missing?
![[asy] unitsize(10mm); defaultpen(fontsize(10pt)); pen finedashed=linetype("4 4"); filldraw((1,1)--(2,1)--(2,2)--(4,2)--(4,3)--(1,3)--cycle,grey,black+linewidth(.8pt)); draw((0,1)--(0,3)--(1,3)--(1,4)--(4,4)--(4,3)-- (5,3)--(5,2)--(4,2)--(4,1)--(2,1)--(2,0)--(1,0)--(1,1)--cycle,finedashed); draw((0,2)--(2,2)--(2,4),finedashed); draw((3,1)--(3,4),finedashed); label("$1$",(1.5,0.5)); draw(circle((1.5,0.5),.17)); label("$2$",(2.5,1.5)); draw(circle((2.5,1.5),.17)); label("$3$",(3.5,1.5)); draw(circle((3.5,1.5),.17)); label("$4$",(4.5,2.5)); draw(circle((4.5,2.5),.17)); label("$5$",(3.5,3.5)); draw(circle((3.5,3.5),.17)); label("$6$",(2.5,3.5)); draw(circle((2.5,3.5),.17)); label("$7$",(1.5,3.5)); draw(circle((1.5,3.5),.17)); label("$8$",(0.5,2.5)); draw(circle((0.5,2.5),.17)); label("$9$",(0.5,1.5)); draw(circle((0.5,1.5),.17));[/asy]](/static/aops/c5b0c747cc7dedbdf0709aa5483f90ea0676b76b.png)
\mathrm{(A) \ } 2\qquad \mathrm{(B) \ } 3\qquad \mathrm{(C) \ } 4\qquad \mathrm{(D) \ } 5\qquad \mathrm{(E) \ } 6
Full credit goes to MAA for authoring these problems. These problems were taken on the AOPS website.
