Problem
2006 AMC 10B Problem 19

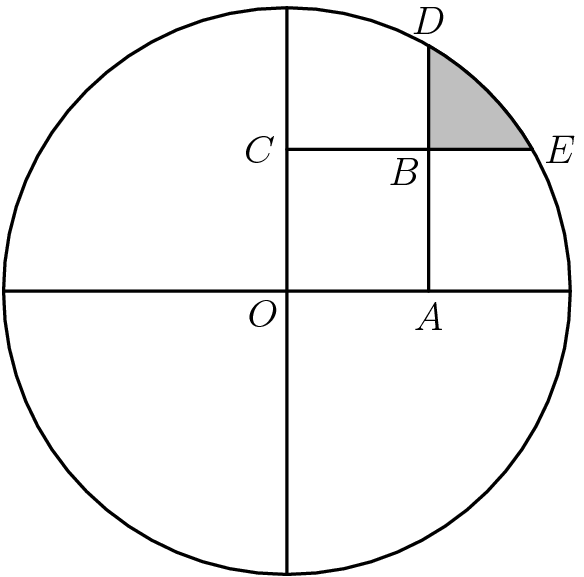

A circle of radius 2 is centered at O. Square OABC has side length 1. Sides AB and CB are extended past B to meet the circle at D and E, respectively. What is the area of the shaded region in the figure, which is bounded by BD, BE, and the minor arc connecting D and E?
![[asy] unitsize(1.5cm); defaultpen(.8); draw( circle( (0,0), 2 ) ); draw( (-2,0) -- (2,0) ); draw( (0,-2) -- (0,2) ); pair D = intersectionpoint( circle( (0,0), 2 ), (1,0) -- (1,2) ); pair Ep = intersectionpoint( circle( (0,0), 2 ), (0,1) -- (2,1) ); draw( (1,0) -- D ); draw( (0,1) -- Ep ); filldraw( (1,1) -- arc( (0,0),Ep,D ) -- cycle, mediumgray, black ); label("$O$",(0,0),SW); label("$A$",(1,0),S); label("$C$",(0,1),W); label("$B$",(1,1),SW); label("$D$",D,N); label("$E$",Ep,E); [/asy]](/static/aops/d96de8eea5aaf413adf41d2ee020a36ae9a4aeef.png)
\mathrm{(A) \ } \frac{\pi}{3}+1-\sqrt{3}\qquad \mathrm{(B) \ } \frac{\pi}{2}(2-\sqrt{3})\qquad \mathrm{(C) \ } \pi(2-\sqrt{3})\qquad \mathrm{(D) \ } \frac{\pi}{6}+\frac{\sqrt{3}+1}{2}\qquad \mathrm{(E) \ } \frac{\pi}{3}-1+\sqrt{3}
Full credit goes to MAA for authoring these problems. These problems were taken on the AOPS website.
