Problem

2006 AMC 12B Problem 15

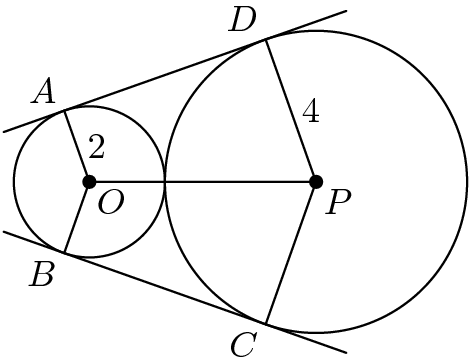

Circles with centers $O$ and $P$ have radii $2$ and $4$ , respectively, and are externally tangent. Points $A$ and $B$ are on the circle centered at $O$ , and points $C$ and $D$ are on the circle centered at $P$ , such that $\overline{AD}$ and $\overline{BC}$ are common external tangents to the circles. What is the area of hexagon $AOBCPD$ ?

[asy] unitsize(0.4 cm); defaultpen(linewidth(0.7) + fontsize(11)); pair A, B, C, D; pair[] O; O[1] = (6,0); O[2] = (12,0); A = (32/6,8*sqrt(2)/6); B = (32/6,-8*sqrt(2)/6); C = 2*B; D = 2*A; draw(Circle(O[1],2)); draw(Circle(O[2],4)); draw((0.7*A)--(1.2*D)); draw((0.7*B)--(1.2*C)); draw(O[1]--O[2]); draw(A--O[1]); draw(B--O[1]); draw(C--O[2]); draw(D--O[2]); label("$A$", A, NW); label("$B$", B, SW); label("$C$", C, SW); label("$D$", D, NW); dot("$O$", O[1], SE); dot("$P$", O[2], SE); label("$2$", (A + O[1])/2, E); label("$4$", (D + O[2])/2, E);[/asy]

$\textbf{(A) } 18\sqrt {3} \qquad \textbf{(B) } 24\sqrt {2} \qquad \textbf{(C) } 36 \qquad \textbf{(D) } 24\sqrt {3} \qquad \textbf{(E) } 32\sqrt {2}$
