Problem
2007 AMC 10A Problem 24

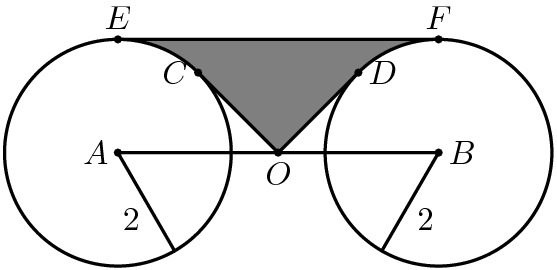

Circles centered at A and B each have radius 2, as shown. Point O is the midpoint of \overline{AB}, and OA = 2\sqrt {2}. Segments OC and OD are tangent to the circles centered at A and B, respectively, and EF is a common tangent. What is the area of the shaded region ECODF?
![[asy] unitsize(6mm); defaultpen(fontsize(10pt)+linewidth(.8pt)); dotfactor=3; pair O=(0,0); pair A=(-2*sqrt(2),0); pair B=(2*sqrt(2),0); pair G=shift(0,2)*A; pair F=shift(0,2)*B; pair C=shift(A)*scale(2)*dir(45); pair D=shift(B)*scale(2)*dir(135); pair X=A+2*dir(-60); pair Y=B+2*dir(240); path P=C--O--D--Arc(B,2,135,90)--G--Arc(A,2,90,45)--cycle; fill(P,gray); draw(Circle(A,2)); draw(Circle(B,2)); dot(A); label("$A$",A,W); dot(B); label("$B$",B,E); dot(C); label("$C$",C,W); dot(D); label("$D$",D,E); dot(G); label("$E$",G,N); dot(F); label("$F$",F,N); dot(O); label("$O$",O,S); draw(G--F); draw(C--O--D); draw(A--B); draw(A--X); draw(B--Y); label("$2$",midpoint(A--X),SW); label("$2$",midpoint(B--Y),SE); [/asy]](/static/aops/20b4ca7705e8a4bf8d62af3542fcb609a5871ed9.png)
\text{(A)}\ \frac {8\sqrt {2}}{3} \qquad \text{(B)}\ 8\sqrt {2} - 4 - \pi \qquad \text{(C)}\ 4\sqrt {2} \qquad \text{(D)}\ 4\sqrt {2} + \frac {\pi}{8} \qquad \text{(E)}\ 8\sqrt {2} - 2 - \frac {\pi}{2}
Full credit goes to MAA for authoring these problems. These problems were taken on the AOPS website.
