Problem
2012 AMC 10A Problem 18

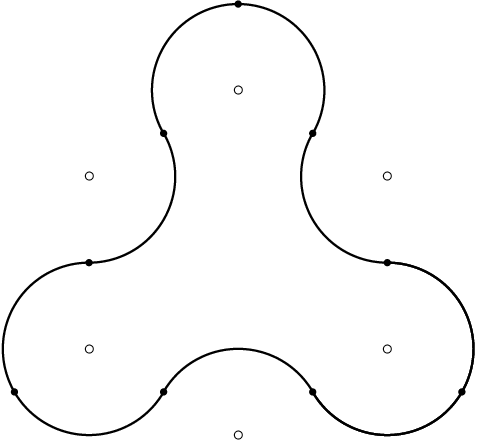

The closed curve in the figure is made up of 9 congruent circular arcs each of length \frac{2\pi}{3}, where each of the centers of the corresponding circles is among the vertices of a regular hexagon of side 2. What is the area enclosed by the curve?
![[asy] size(5cm); defaultpen(fontsize(6pt)); dotfactor=4; label("$\circ$",(0,1)); label("$\circ$",(0.865,0.5)); label("$\circ$",(-0.865,0.5)); label("$\circ$",(0.865,-0.5)); label("$\circ$",(-0.865,-0.5)); label("$\circ$",(0,-1)); dot((0,1.5)); dot((-0.4325,0.75)); dot((0.4325,0.75)); dot((-0.4325,-0.75)); dot((0.4325,-0.75)); dot((-0.865,0)); dot((0.865,0)); dot((-1.2975,-0.75)); dot((1.2975,-0.75)); draw(Arc((0,1),0.5,210,-30)); draw(Arc((0.865,0.5),0.5,150,270)); draw(Arc((0.865,-0.5),0.5,90,-150)); draw(Arc((0.865,-0.5),0.5,90,-150)); draw(Arc((0,-1),0.5,30,150)); draw(Arc((-0.865,-0.5),0.5,330,90)); draw(Arc((-0.865,0.5),0.5,-90,30)); [/asy]](/static/aops/c60bfc28966e098bdaf9ca15e85a699035a11884.png)
\textbf{(A)}\ 2\pi+6\qquad\textbf{(B)}\ 2\pi+4\sqrt{3}\qquad\textbf{(C)}\ 3\pi+4\qquad\textbf{(D)}\ 2\pi+3\sqrt{3}+2\qquad\textbf{(E)}\ \pi+6\sqrt{3}
