Problem
2015 AMC 8 Problem 21

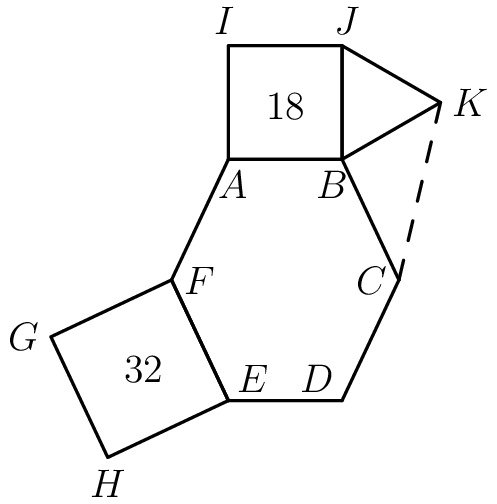

In the given figure hexagon ABCDEF is equiangular, ABJI and FEHG are squares with areas 18 and 32 respectively, \triangle JBK is equilateral and FE=BC. What is the area of \triangle KBC?
![[asy] draw((-4,6*sqrt(2))--(4,6*sqrt(2))); draw((-4,-6*sqrt(2))--(4,-6*sqrt(2))); draw((-8,0)--(-4,6*sqrt(2))); draw((-8,0)--(-4,-6*sqrt(2))); draw((4,6*sqrt(2))--(8,0)); draw((8,0)--(4,-6*sqrt(2))); draw((-4,6*sqrt(2))--(4,6*sqrt(2))--(4,8+6*sqrt(2))--(-4,8+6*sqrt(2))--cycle); draw((-8,0)--(-4,-6*sqrt(2))--(-4-6*sqrt(2),-4-6*sqrt(2))--(-8-6*sqrt(2),-4)--cycle); label("$I$",(-4,8+6*sqrt(2)),dir(100)); label("$J$",(4,8+6*sqrt(2)),dir(80)); label("$A$",(-4,6*sqrt(2)),dir(280)); label("$B$",(4,6*sqrt(2)),dir(250)); label("$C$",(8,0),W); label("$D$",(4,-6*sqrt(2)),NW); label("$E$",(-4,-6*sqrt(2)),NE); label("$F$",(-8,0),E); draw((4,8+6*sqrt(2))--(4,6*sqrt(2))--(4+4*sqrt(3),4+6*sqrt(2))--cycle); label("$K$",(4+4*sqrt(3),4+6*sqrt(2)),E); draw((4+4*sqrt(3),4+6*sqrt(2))--(8,0),dashed); label("$H$",(-4-6*sqrt(2),-4-6*sqrt(2)),S); label("$G$",(-8-6*sqrt(2),-4),W); label("$32$",(-10,-8),N); label("$18$",(0,6*sqrt(2)+2),N); [/asy]](/static/aops/f11d24db37ed085cbc452224454338f8eabdfb37.png)
\textbf{(A) }6\sqrt{2}\qquad\textbf{(B) }9\qquad\textbf{(C) }12\qquad\textbf{(D) }9\sqrt{2}\qquad\textbf{(E) }32
