Problem
1973 AHSME Problem 11

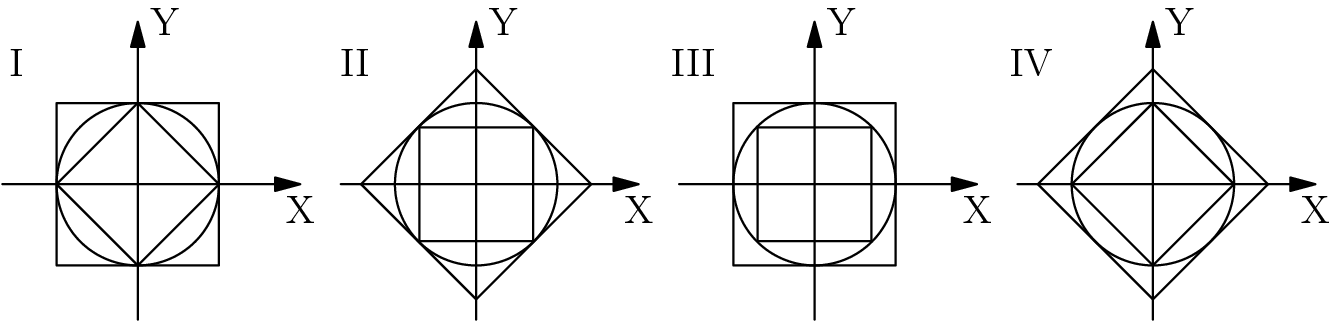

A circle with a circumscribed and an inscribed square centered at the origin of a rectangular coordinate system with positive and axes and is shown in each figure to below.
![[asy] size((400)); draw((0,0)--(22,0), EndArrow); draw((10,-10)--(10,12), EndArrow); draw((25,0)--(47,0), EndArrow); draw((35,-10)--(35,12), EndArrow); draw((-25,0)--(-3,0), EndArrow); draw((-15,-10)--(-15,12), EndArrow); draw((-50,0)--(-28,0), EndArrow); draw((-40,-10)--(-40,12), EndArrow); draw(Circle((-40,0),6)); draw(Circle((-15,0),6)); draw(Circle((10,0),6)); draw(Circle((35,0),6)); draw((-34,0)--(-40,6)--(-46,0)--(-40,-6)--(-34,0)--(-34,6)--(-46,6)--(-46,-6)--(-34,-6)--cycle); draw((-6.5,0)--(-15,8.5)--(-23.5,0)--(-15,-8.5)--cycle); draw((-10.8,4.2)--(-19.2,4.2)--(-19.2,-4.2)--(-10.8,-4.2)--cycle); draw((14.2,4.2)--(5.8,4.2)--(5.8,-4.2)--(14.2,-4.2)--cycle); draw((16,6)--(4,6)--(4,-6)--(16,-6)--cycle); draw((41,0)--(35,6)--(29,0)--(35,-6)--cycle); draw((43.5,0)--(35,8.5)--(26.5,0)--(35,-8.5)--cycle); label("I", (-49,9)); label("II", (-24,9)); label("III", (1,9)); label("IV", (26,9)); label("X", (-28,0), S); label("X", (-3,0), S); label("X", (22,0), S); label("X", (47,0), S); label("Y", (-40,12), E); label("Y", (-15,12), E); label("Y", (10,12), E); label("Y", (35,12), E);[/asy]](/static/aops/d414580296d8ae8eb80ac3c416e1f59836c40113.png)
The inequalities
|x|+|y|\leq\sqrt{2(x^{2}+y^{2})}\leq 2\text{Max}(|x|, |y|)
are represented geometrically* by the figure numbered
\textbf{(A)}\ I\qquad\textbf{(B)}\ II\qquad\textbf{(C)}\ III\qquad\textbf{(D)}\ IV\qquad\textbf{(E)}\ \text{none of these}
* An inequality of the form f(x, y) \leq g(x, y), for all x and y is represented geometrically by a figure showing the containment
\begin{array}{l} \{\text{The set of points }(x, y)\text{ such that }g(x, y) \leq a\} \subset\\ \{\text{The set of points }(x, y)\text{ such that }f(x, y) \leq a\} \end{array}
for a typical real number a.
