Problem

2004 AMC 10B Problem 25

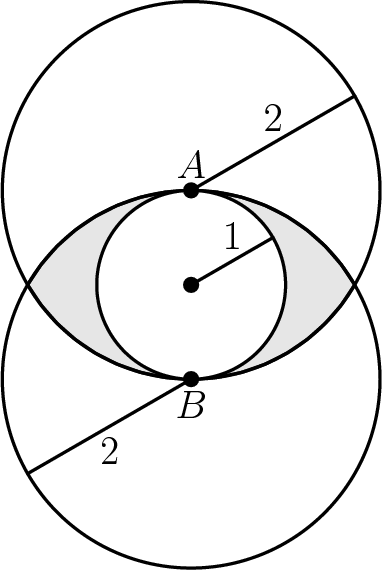

A circle of radius 1 is internally tangent to two circles of radius 2 at points A and B, where AB is a diameter of the smaller circle. What is the area of the region, shaded in the picture, that is outside the smaller circle and inside each of the two larger circles?

\mathrm{(A) \ } \frac{5}{3} \pi - 3\sqrt 2 \qquad \mathrm{(B) \ } \frac{5}{3} \pi - 2\sqrt 3 \qquad \mathrm{(C) \ } \frac{8}{3} \pi - 3\sqrt 3 \qquad \mathrm{(D) \ } \frac{8}{3} \pi - 3\sqrt 2 \qquad \mathrm{(E) \ } \frac{8}{3} \pi - 2\sqrt 3


[asy] unitsize(1cm); defaultpen(0.8); pair O=(0,0), A=(0,1), B=(0,-1); path bigc1 = Circle(A,2), bigc2 = Circle(B,2), smallc = Circle(O,1); pair[] P = intersectionpoints(bigc1, bigc2); filldraw( arc(A,P[0],P[1])--arc(B,P[1],P[0])--cycle, lightgray, black ); draw(bigc1); draw(bigc2); unfill(smallc); draw(smallc); dot(O); dot(A); dot(B); label("$A$",A,N); label("$B$",B,S); draw( O--dir(30) ); draw( A--(A+2*dir(30)) ); draw( B--(B+2*dir(210)) ); label("$1$", O--dir(30), N ); label("$2$", A--(A+2*dir(30)), N ); label("$2$", B--(B+2*dir(210)), S ); [/asy]

Full credit goes to MAA for authoring these problems. These problems were taken on the AOPS website.


Show/Hide Problem Tags

Problem Tags: 2-d Geometry
