Problem
2006 AMC 10B Problem 23

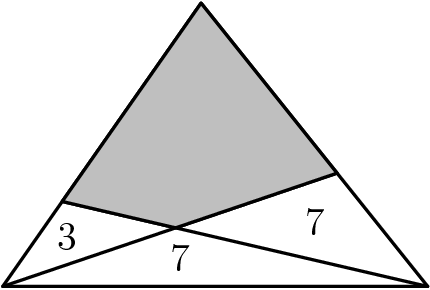

A triangle is partitioned into three triangles and a quadrilateral by drawing two lines from vertices to their opposite sides. The areas of the three triangles are 3, 7, and 7 as shown. What is the area of the shaded quadrilateral?
![[asy] unitsize(1.5cm); defaultpen(.8); pair A = (0,0), B = (3,0), C = (1.4, 2), D = B + 0.4*(C-B), Ep = A + 0.3*(C-A); pair F = intersectionpoint( A--D, B--Ep ); draw( A -- B -- C -- cycle ); draw( A -- D ); draw( B -- Ep ); filldraw( D -- F -- Ep -- C -- cycle, mediumgray, black ); label("$7$",(1.25,0.2)); label("$7$",(2.2,0.45)); label("$3$",(0.45,0.35)); [/asy]](/static/aops/cf791fd7b612d29ad4afcad408d1c4e8e0c60790.png)
\mathrm{(A) \ } 15\qquad \mathrm{(B) \ } 17\qquad \mathrm{(C) \ } \frac{35}{2}\qquad \mathrm{(D) \ } 18\qquad \mathrm{(E) \ } \frac{55}{3}
Full credit goes to MAA for authoring these problems. These problems were taken on the AOPS website.
