Problem

2006 AMC 10B Problem 24

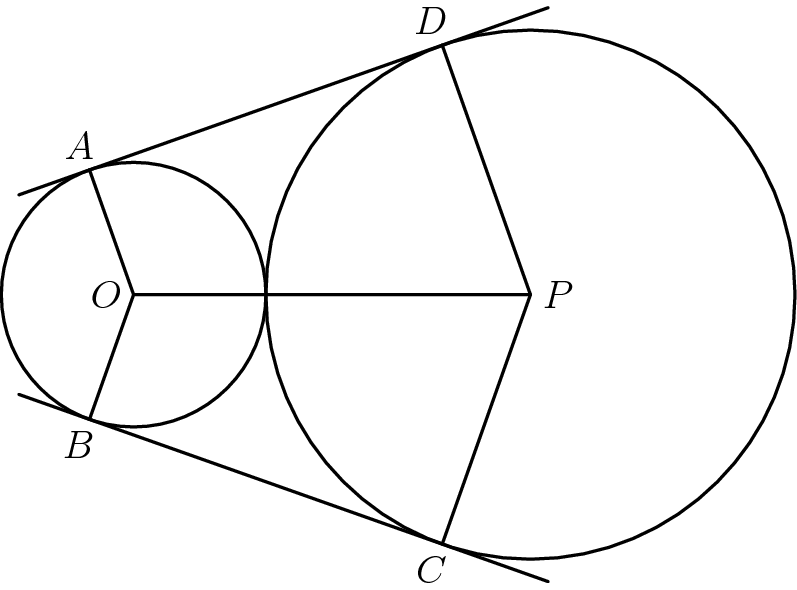

Circles with centers O and P have radii 2 and 4, respectively, and are externally tangent. Points A and B on the circle with center O and points C and D on the circle with center P are such that AD and BC are common external tangents to the circles. What is the area of the concave hexagon AOBCPD?

[asy] unitsize(.7cm); defaultpen(.8); pair O = (0,0), P = (6,0), Q = (-6,0); pair A = intersectionpoint( arc( (-3,0), (0,0), (-6,0) ), circle( O, 2 ) ); pair B = (A.x, -A.y ); pair D = Q + 2*(A-Q); pair C = Q + 2*(B-Q); draw( circle(O,2) ); draw( circle(P,4) ); draw( (Q + 0.8*(A-Q)) -- ( Q + 2.3*(A-Q) ) ); draw( (Q + 0.8*(B-Q)) -- ( Q + 2.3*(B-Q) ) ); draw( A -- O -- B ); draw( C -- P -- D ); draw( O -- P ); label("$O$",O,W); label("$P$",P,E); label("$A$",A,NNW); label("$B$",B,SSW); label("$D$",D,NNW); label("$C$",C,SSW); [/asy]

\mathrm{(A) \ } 18\sqrt{3}\qquad \mathrm{(B) \ } 24\sqrt{2}\qquad \mathrm{(C) \ } 36\qquad \mathrm{(D) \ } 24\sqrt{3}\qquad \mathrm{(E) \ } 32\sqrt{2}

Full credit goes to MAA for authoring these problems. These problems were taken on the AOPS website.


Show/Hide Problem Tags

Problem Tags: 2-d Geometry
Want to contribute problems and receive full credit? Click here to add your problem!
Please report any issues to us in our Discord server
Go to previous contest problem (SHIFT + Left Arrow) Go to next contest problem (SHIFT + Right Arrow)
Category: AMC 10B
Points: 4
