Problem
1976 AHSME Problem 18
![[asy] //size(100);//local size(200); real r1=2; pair O=(0,0), D=(.5,.5*sqrt(3)), C=(D.x+.5*3,D.y), B, B_prime=endpoint(arc(D, 3, 0,-2)); B=B_prime; path c1=circle(O, r1); pair C=midpoint(D--B_prime); path arc2=arc(B_prime, 6/2, 158.25,250); draw(c1); draw(O--D); draw(D--C); draw(C--B_prime); pair A=beginpoint(arc2); draw(B_prime--A); //dot(O^^D^^C^^A); //dot(B_prime); label("\scriptsize{$O$}",O,.6dir(D--O)); label("\scriptsize{$C$}",C,.5dir(-55)); label("\scriptsize{$D$}", D,.2NW); //label("\scriptsize{$B$}",B,S); label("\scriptsize{$B$}", B_prime, .5*dir(D--B_prime)); label("\scriptsize{$A$}",A,.5dir(NE)); label("\tiny{2}", O--D, .45*LeftSide); label("\tiny{3}", D--C, .45*LeftSide); label("\tiny{6}", B_prime--A, .45*RightSide); label("\tiny{3}", waypoint(C--B_prime,.1), .45*N); //Credit to Klaus-Anton for the diagram[/asy]](/static/aops/572d140ec9576ead334e4778ce65273cd4f47d73.png)

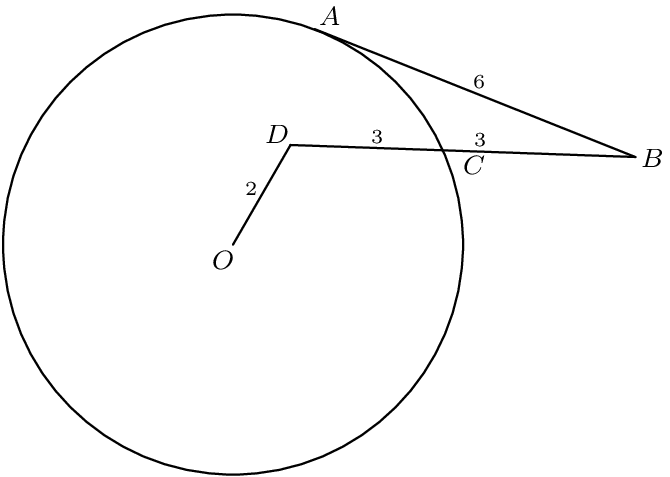

In the adjoining figure, AB is tangent at A to the circle with center O; point D is interior to the circle; and DB intersects the circle at C. If BC=DC=3, OD=2, and AB=6, then the radius of the circle is
\textbf{(A) }3+\sqrt{3}\qquad \textbf{(B) }15/\pi\qquad \textbf{(C) }9/2\qquad \textbf{(D) }2\sqrt{6}\qquad \textbf{(E) }\sqrt{22}
